Śruby utwardzane 8.8 - 10.9 - 12.9 Sosnowiec | Przeźmierowo - ŚRUB-TECH

srub-tech

sruby

Śruby

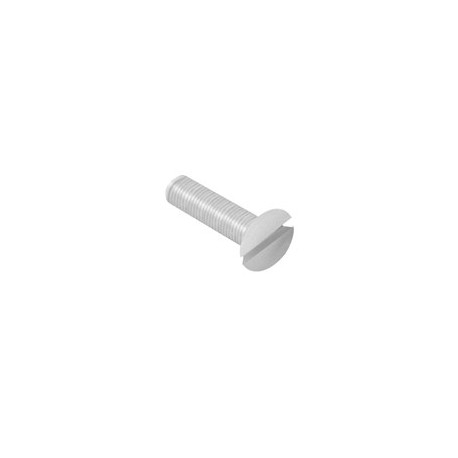

z łbem stożkowym

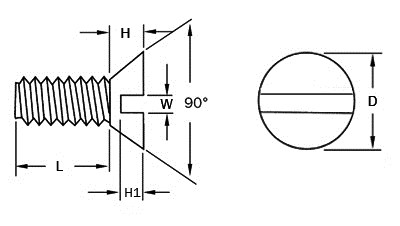

sruby-schemat-0

Gwint	L
M5	10
M5	13
M5	15
M5	20

z łbem walcowym

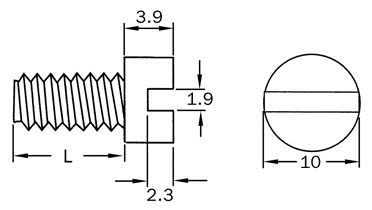

sruby-schemat-1

Gwint	L
M6	6
M6	8
M6	10
M6	12
M6	16
M6	20
M6	25
M6	30

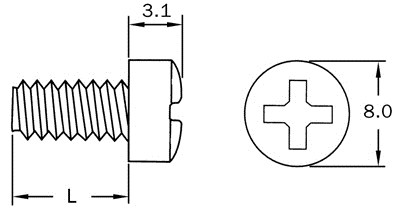

sruby-schemat-2

Gwint	L
M4	6
M4	8
M4	10
M4	12
M4	16
M4	20
M4	25

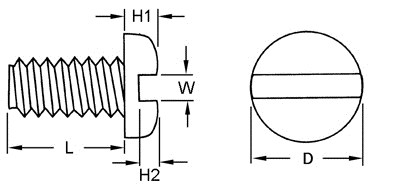

sruby-schemat-3

Gwint	L	D	H1	H2	W
M4	6	7	2.8	1.2	1.3
M4	8	7	2.8	1.2	1.3
M4	10	7	2.8	1.2	1.3
M4	12	7	2.8	1.2	1.3
M4	20	7	2.8	1.2	1.3
M4	25	7	2.8	1.2	1.3
M6	8	12	4.0	1.7	1.7
M6	10	12	4.0	1.7	1.7
M6	12	12	4.0	1.7	1.7
M6	16	12	4.0	1.7	1.7
M6	20	12	4.0	1.7	1.7
M6	25	12	4.0	1.7	1.7
M6	30	12	4.0	1.7	1.7

nakretki

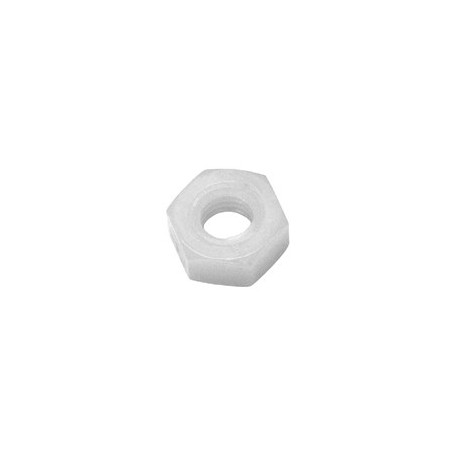

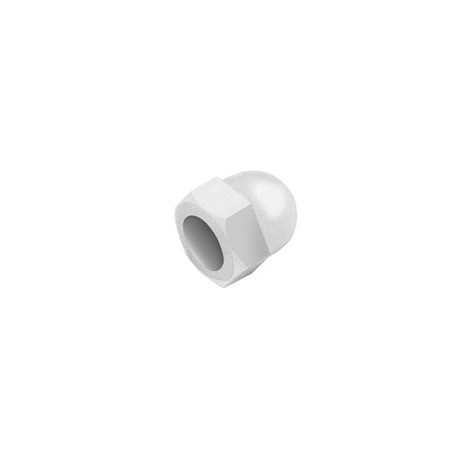

Nakrętki

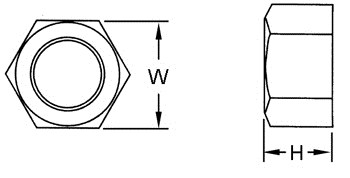

nakretki-schemat-0

Gwint	W	H
M3	5.5	2.4
M4	6.9	3.0
M5	8.0	4.0
M6	9.9	5.4
M8	13.0	6.5
M10	17.0	8.0
M12	19.0	10.0
M16	24.0	13.0
M20	30.0	16.0

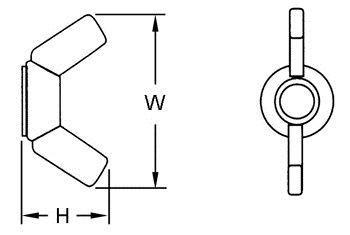

nakretki-schemat-1

Gwint	L
M6	6
M6	8
M6	10
M6	12
M6	16
M6	20
M6	25
M6	30

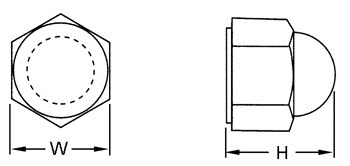

nakretki-schemat-2

Gwint	L
M4	6
M4	8
M4	10
M4	12
M4	16
M4	20
M4	25

podkladki

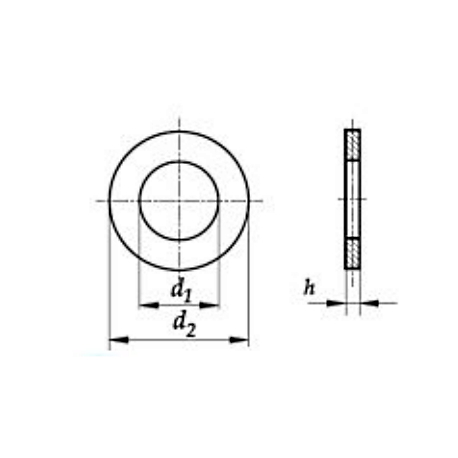

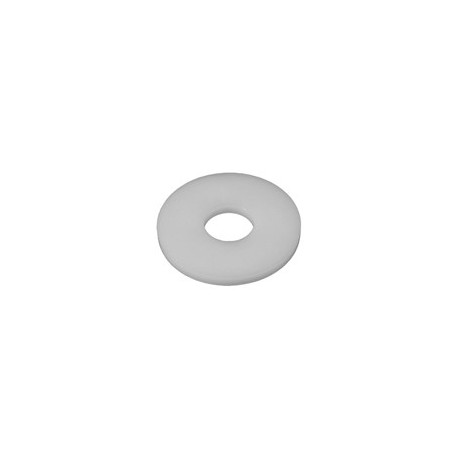

Podkładki

Gwint	dp	z
1.6	7.9	2.3
3.2	12.7	2.5
3.3	6.4	2.4
3.6	6.4	2.0
3.6	7.2	2.8
3.6	7.2	3.0
3.6	7.9	1.2
3.7	6.4	5.6
3.7	6.9	0.8
4.0	25.4	1.6
4.1	7.9	1.6
4.3	15.9	0.8
4.3	19.0	1.5
4.7	7.9	1.3
4.7	9.5	0.8
4.7	12.7	2.4
4.7	15.9	3.2
4.7	25.4	6.4
4.8	11.0	3.2
4.8	22.5	1.6
4.8	25.6	1.6
4.8	34.9	1.6
4.8	38.1	1.7
4.9	12.7	3.2
5.1	11.1	1.6
5.1	11.4	1.2
5.1	19.1	4.7
5.2	12.7	3.3
5.3	11.0	1.0
5.5	15.9	1.6
5.5	15.9	3.2
5.7	10.5	1.3
5.8	9.5	3.0
5.8	11.1	2.0
5.8	12.5	1.0

D1	D2	H
6.3	13.8	2.6
6.3	15.6	1.9
6.4	11.3	3.2
6.4	12.0	1.5
6.4	13.0	1.0
6.4	13.0	1.0
6.4	14.3	0.8
6.4	15.0	3.0
6.4	24.0	2.5
6.5	9.5	2.9
6.5	12.7	0.8
6.5	12.7	3.2
6.5	14.3	2.4
6.5	15.9	3.2
6.5	19.1	1.6
6.5	22.2	1.6
6.6	17.4	1.5
6.6	19.1	3.2
6.6	31.8	1.5
6.7	15.1	3.3
6.7	15.9	1.5
6.7	15.9	2.4
6.8	19.1	4.7
7.0	25.4	1.6
7.1	10.4	2.0
7.1	15.9	0.8
7.1	15.9	2.9
7.1	31.8	1.6
7.9	11.1	4.7
7.9	12.7	4.0
7.9	15.9	1.6
7.9	17.4	6.4
7.9	19.1	3.2
7.9	22.2	4.7
8.0	22.1	1.6
8.1	19.1	1.6
8.1	22.2	1.8

D1	D2	H
8.1	22.4	3.2
8.2	16.0	3.0
8.2	19.1	3.2
8.2	30.1	2.0
8.4	21.0	2.0
8.4	24.0	2.5
8.6	15.6	3.2
8.6	17.4	1.5
8.6	19.7	8.1
8.7	19.1	1.6
8.7	22.2	1.6
8.9	19.1	0.8
9.5	25.4	6.4
9.5	25.4	9.5
9.6	14.2	9.5
9.6	15.9	1.6
9.7	19.1	1.6
9.7	22.2	2.4
9.9	15.9	6.7
9.9	19.1	1.6
9.9	31.8	2.0
9.9	32.0	1.6
10.0	19.1	3.2
10.0	19.2	3.1
10.3	19.1	5.1
10.3	20.6	1.6
10.3	20.6	3.2
10.3	25.0	3.2
10.3	25.3	2.0
10.4	25.4	1.6
10.5	25.4	2.4
11.0	25.0	2.0
12.2	21.0	2.5
12.5	22.2	2.0
12.7	28.6	3.0
12.7	31.8	1.6

D1	D2	H
12.7	34.9	1.6
12.7	38.1	3.2
12.8	25.4	3.2
12.9	25.4	1.6
13.3	34.9	3.2
13.5	25.4	1.5
14.3	25.4	3.2
14.3	25.4	6.4
14.3	31.8	1.5
14.5	20.3	3.4
15.0	30.0	1.0
15.2	24.9	1.5
15.5	24.0	1.6
15.9	23.8	2.4
15.9	25.4	4.0
16.1	25.4	1.9
16.4	33.3	3.0
17.0	23.0	3.0
17.0	25.4	4.0
19.1	25.4	1.5
19.1	25.4	1.6
19.2	25.6	3.5
19.4	24.5	0.9
19.4	31.8	2.0
20.5	40.0	1.5
20.6	26.8	3.2
25.4	33.3	3.2
